On Axis Wire Grating
Rig
GOTO RONCHI INDEX
Copyright – P. J.
Smith
But permission is
given to distribute this material in unaltered form as long as it is not sold
for profit.
The following is an unusual, simple method of
using a wire wound grating exactly on axis.
I have never tried the system but
see no reason it would not work. There
is some collaboration to this in Applied Optics mmmmm where gratings
illuminated in a similar way are described.
Since the Grating/Grating light throughput is so high it is possible to
simply place a piece of Aluminium foil or even a piece of white paper behind one
portion of a good grating and use bright sunlight or a moderate light beam as
the illuminant.
The
principle is outlined because it may be of use on extremely deep surfaces.

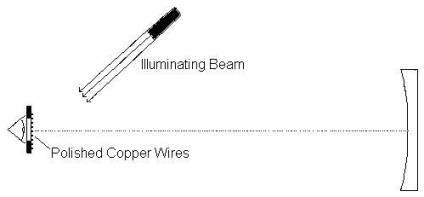

The source is a glint off the polished wire strands of an illuminating beam
and the Ronchi image is viewed through the strands.
There is no doubt this will work if the grating is made very
accurately. Even slight grating faults
will seriously degrade its performance in what amounts to the Grating/Grating mode.
Since there are other ways to ensure close
in axial performance using a slit, I would not recommend this arrangement
unless you wish to experiment.
